Week: Design of Experiments

Workshop 12: ANOVA & Latin Squares

Applying T-tests and ANOVA

Tim Fraser, PhD

Research Associate, Systems Engineering
Cornell University

SYSEN 5300: Systems Engineering & Six Sigma

for Design and Operation of Reliable Systems

Risk Analysis with a particular emphasis on risk assessment and risk characterization. The key modeling tools we will study are how to conduct Failure Modes and Effects Analyses including the development of fault trees and event trees under uncertainty.
Modeling Reliability Modeling component and system reliability, including the use of physical acceleration models. Reliability is the ability of a system or component to perform its required function under stated conditions for a specified period of time.

Quality Control Six sigma and statistical process control for quality control and improvement. A key process in the operation of reliable systems is the development and effective use of mechanisms to detect when performance is deteriorating so that corrective action can be taken.
System Improvement Improvement and optimization of system design for reliability. This will lead us to study design of experiments and the estimation of response surfaces that can greatly catalyze innovation, problem solving, and discovery.

Today's Class

Recap: Comparing 2 Groups
Comparing 3 Groups
Block Randomization with 3 Groups
Latin Squares

Recap: Comparing 2 Groups

Workshop 12

Designing Experiments

Comparing 2 Unpaired Samples with T-tests in R

An industrial process made varying yields from methods A and B.
Does B have a significantly better yield than A?

library(dplyr)
library(broom)

data = tibble(
  method = c("A","A","A","A","A","A","A","A","A","A",
             "B","B","B","B","B","B","B","B","B","B"),
  yield = c(89.7, 81.4, 84.5, 84.8, 87.3, 79.7, 85.1, 81.7, 83.7, 84.5,
            84.7, 86.1, 83.2, 91.9, 86.3, 79.3, 82.6, 89.1, 83.7, 88.5))

Code available in Canvas

Two flavors of unpaired t-test

# T-test assuming equal variance (unpaired)
t.test(formula = yield ~ method, data = data, var.equal = TRUE)

# T-test not assuming equal variance
t.test(formula = yield ~ method, data = data, var.equal = FALSE)

R console output of a two-sample t-test assuming equal variance

var.equal = TRUE

R console output of a Welch two-sample t-test

var.equal = FALSE

Comparing Variance in 2 Groups with F-tests in R

An industrial process made varying yields from methods A and B.
Is the variance in yield for methods A vs. B significantly different?

library(dplyr)
library(broom)

data = tibble(
  method = c("A","A","A","A","A","A","A","A","A","A",
             "B","B","B","B","B","B","B","B","B","B"),
  yield = c(89.7, 81.4, 84.5, 84.8, 87.3, 79.7, 85.1, 81.7, 83.7, 84.5,
            84.7, 86.1, 83.2, 91.9, 86.3, 79.3, 82.6, 89.1, 83.7, 88.5))

F test to compare two variances

# F test to compare two variances.
var.test(formula = yield ~ method, data = data)

# Are they significantly different? (No --> p = 0.5049)

R console output of var.test comparing the variance of yield between methods A and B

Comparing 2 Paired Samples with T-tests in R

An industrial process made a series of paired products, each using method A and B.
Do the products made by B have a significantly better yield than A?

library(dplyr)
library(broom)

# When data comes in pairs, like this, we use paired t-tests.
data2 = tibble(
  yield_a = c(89.7, 81.4, 84.5, 84.8, 87.3, 79.7, 85.1, 81.7, 83.7, 84.5),
  yield_b = c(84.7, 86.1, 83.2, 91.9, 86.3, 79.3, 82.6, 89.1, 83.7, 88.5))

Basic method for a paired t-test

t.test(data2$yield_a, data2$yield_b,
       paired = TRUE, var.equal = TRUE)

R console output of a paired t-test comparing yield_a and yield_b

Permutation Test for Difference of Means

An industrial process made a series of paired products, each using method A and B.
Do the products made by B have a significantly better yield than A?

library(dplyr)
library(broom)

data = tibble(
  method = c("A","A","A","A","A","A","A","A","A","A",
             "B","B","B","B","B","B","B","B","B","B"),
  yield = c(89.7, 81.4, 84.5, 84.8, 87.3, 79.7, 85.1, 81.7, 83.7, 84.5,
            84.7, 86.1, 83.2, 91.9, 86.3, 79.3, 82.6, 89.1, 83.7, 88.5))

Shuffle the labels 1000 times

perms = tibble(rep = 1:1000) %>%
  group_by(rep) %>%
  reframe(data) %>%
  group_by(rep) %>%
  mutate(yield = sample(yield, size = n(), replace = FALSE)) %>%
  group_by(rep) %>%
  summarize(dbar = mean(yield[method == "A"]) -
                   mean(yield[method == "B"]))

Compare the observed difference to the null

# Get the observed difference of means
obs = data %>%
  summarize(dbar = mean(yield[method == "A"]) -
                   mean(yield[method == "B"]))

# 2-tailed percentage of random stats
# greater than the observed
mean( abs(perms$dbar) >= abs(obs$dbar) )

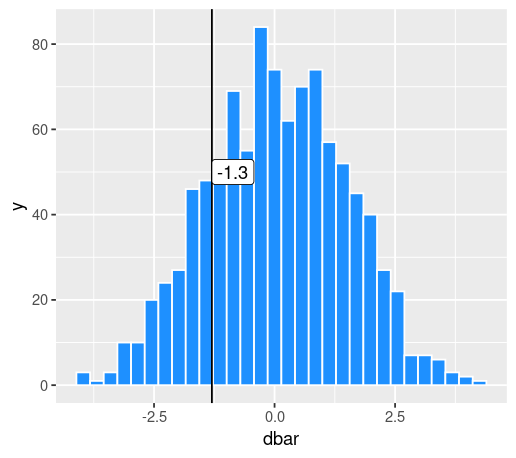

Histogram of 1000 permuted differences of means with the observed difference marked

Comparing 3 Groups

Workshop 12

Designing Experiments

Case Study: Blood Coagulation Times

24 animals receiving four different diets A, B, C, D.
Diets randomly assigned to animals.
Testing done in random order.
Is there real difference between the mean coagulation times for the 4 diets?

Analysis of Variance table for the coagulation experiment

Analysis of Variance (ANOVA) table

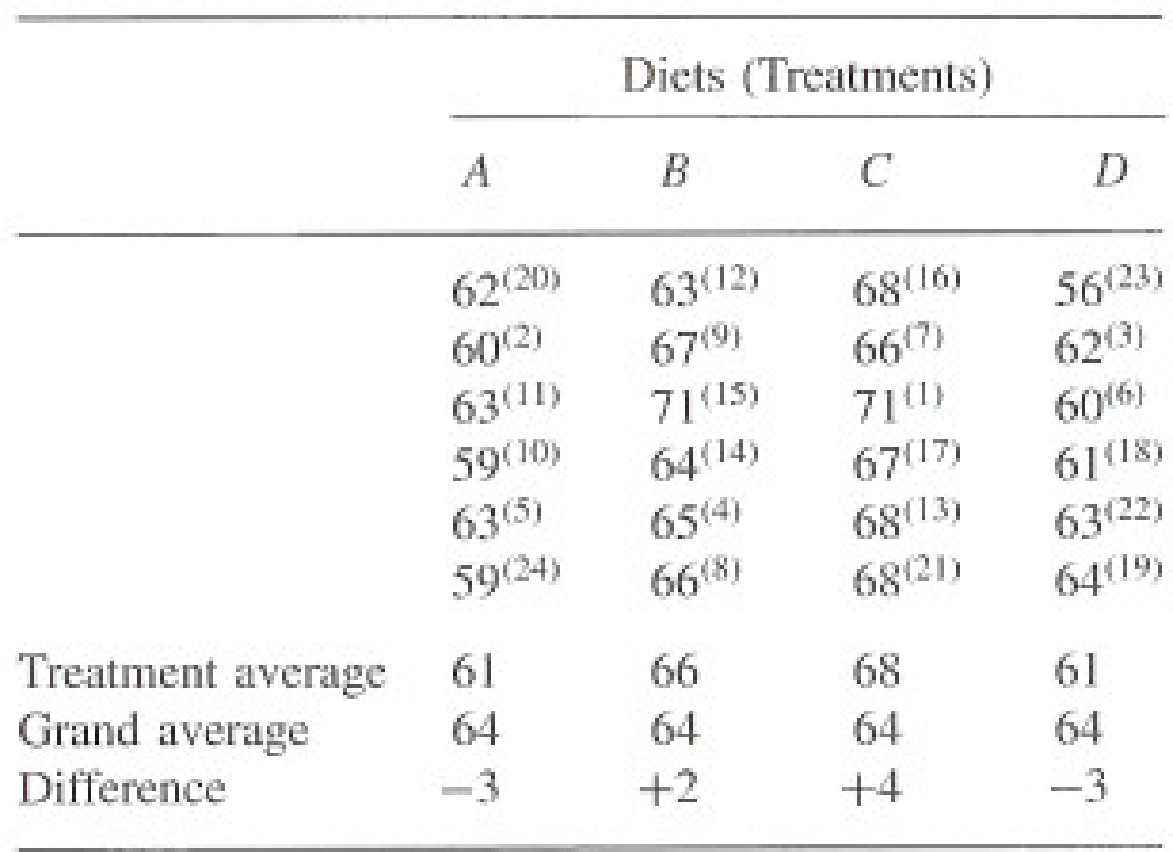

Table of coagulation times for 24 animals grouped by diet A, B, C and D

ANOVA: Analysis of Variance

Scatter of coagulation times with the grand mean drawn against four group means

grand mean vs. four group means

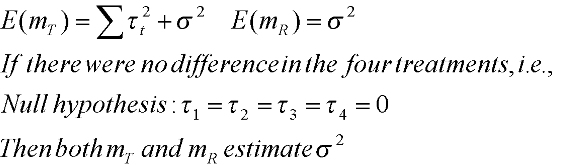

Decomposition of variation around the grand mean into group and within-group parts

Key Question: How much better are the groups at explaining variation than the grand mean?

Calculating Deviations in ANOVA

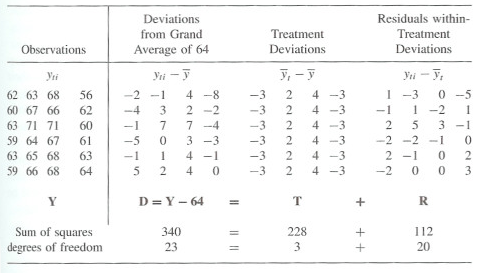

Worked table of deviations of each observation from the grand mean and from its group mean

Diagram naming the total, explained and residual deviation for a single observation

Three Sums of Squares

Total Sum of Squares measures the total variation in your data, using the grand mean as benchmark.
- TSS = sum( (x - xbbar)^2 )
Residual Sum of Squares measures how much deviation remains within each treatment group. This is the unexplained error in your model.
- RSS = sum( (x - xbar)^2 )
Explained Sum of Squares measures how much deviation was explained by your treatment group means.
- ESS = TSS - RSS

Quantities of Interest in ANOVA

Mean Squares Explained: average variation explained, divided by k - 1 groups.
- MSE = (TSS - RSS) / (k - 1)
Mean Squared Error: average variation unexplained, divided by n - k.
- MSR = RSS / (n - k)
F-statistic: ratio of variation explained versus unexplained by your model.
- F = MSE / MSR

n = sample size (24) k = # of groups (4)

F-statistic in ANOVA

If the error is normally distributed (independence of observation assumption of regression)
Then MSE and MSR are independently distributed.
So, ratio F = MSE / MSR follows an F distribution.
F-statistic: How much better is your model than an intercept model alone? (grand mean)

Formula for the F ratio as mean squares explained over mean squared error

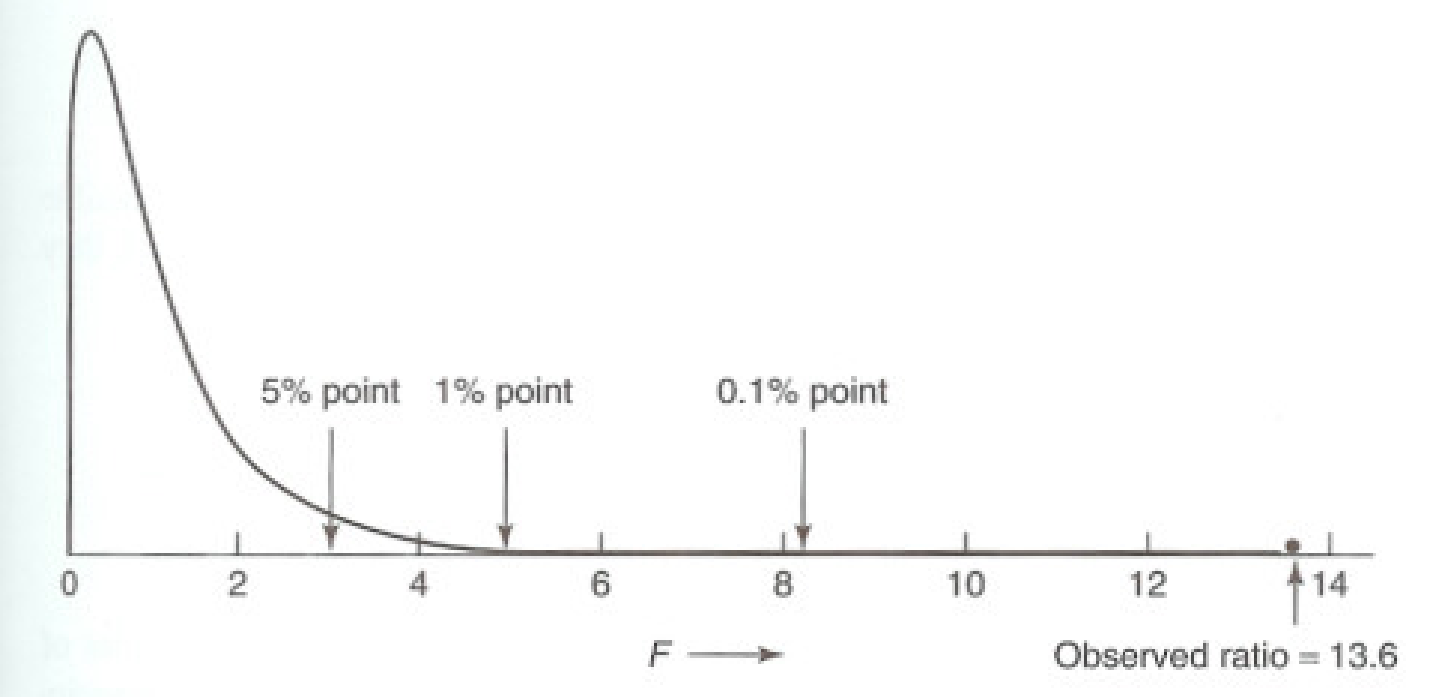

F distribution curve with the upper tail shaded

Comparing 3+ group means with F-test in R

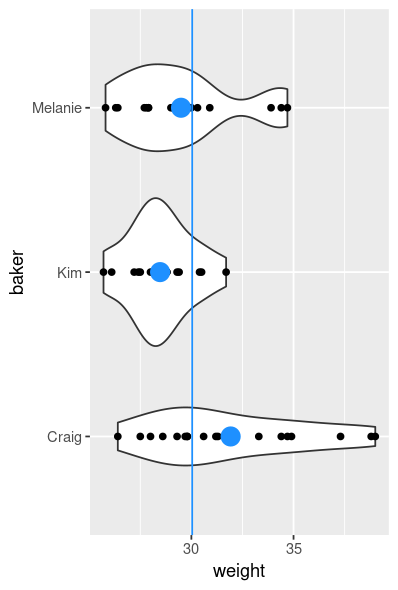

Craig, Kim, and Melanie work for a bakery, but Craig's donuts seem kinda weird.
Does the weight of these donuts vary significantly by the baker?
Calculate an F-statistic and evaluate its significance.

library(dplyr)
library(readr)
library(broom)

donuts = read_csv(
  "https://raw.githubusercontent.com/timothyfraser/sysen/main/workshops/donuts.csv")

Route 1 — use lm()

donuts %>%
  summarize(lm(weight ~ baker) %>% glance()) %>%
  select(sigma, statistic, p.value, df)

R console output showing sigma, statistic, p.value and df from glance

Route 2 — or use aov()

donuts %>%
  reframe(aov(weight ~ baker) %>% tidy())

R console output of a tidied analysis of variance table for weight by baker

Comparing unequal group variances with K² test in R

Craig, Kim, and Melanie work for a bakery, but Craig's donuts seem kinda weird.
Does the variance in weight of these donuts vary significantly by baker? Calculate a K² statistic.
If so, we should NOT assume equal variance when doing ANOVA. Calculate your F statistic.

library(dplyr)
library(readr)
library(broom)

donuts = read_csv(
  "https://raw.githubusercontent.com/timothyfraser/sysen/main/workshops/donuts.csv")

Homogeneity of Variance — Bartlett's test for K²

# Are the variances of my 3+ groups significantly different?
bartlett.test(weight ~ baker, data = donuts)

# If K-squared is significant,
# the differences in variance are significant.

R console output of Bartlett's test of homogeneity of variances

ANOVA without the equal-variance assumption

donuts %>%
  summarize(
    oneway.test(weight ~ baker,
                data = donuts, var.equal = FALSE) %>% tidy())

R console output of a tidied one-way test that does not assume equal variance

Randomized Block Design with 3+ groups

Workshop 12

Designing Experiments

Randomized Block Design

To thoroughly control for alternative explanations, we can randomly assign observations to treatments within blocks.
Example: Penicillin. Estimate effect of treatments accounting for blends.
N = 20 animals, five blends of 4.

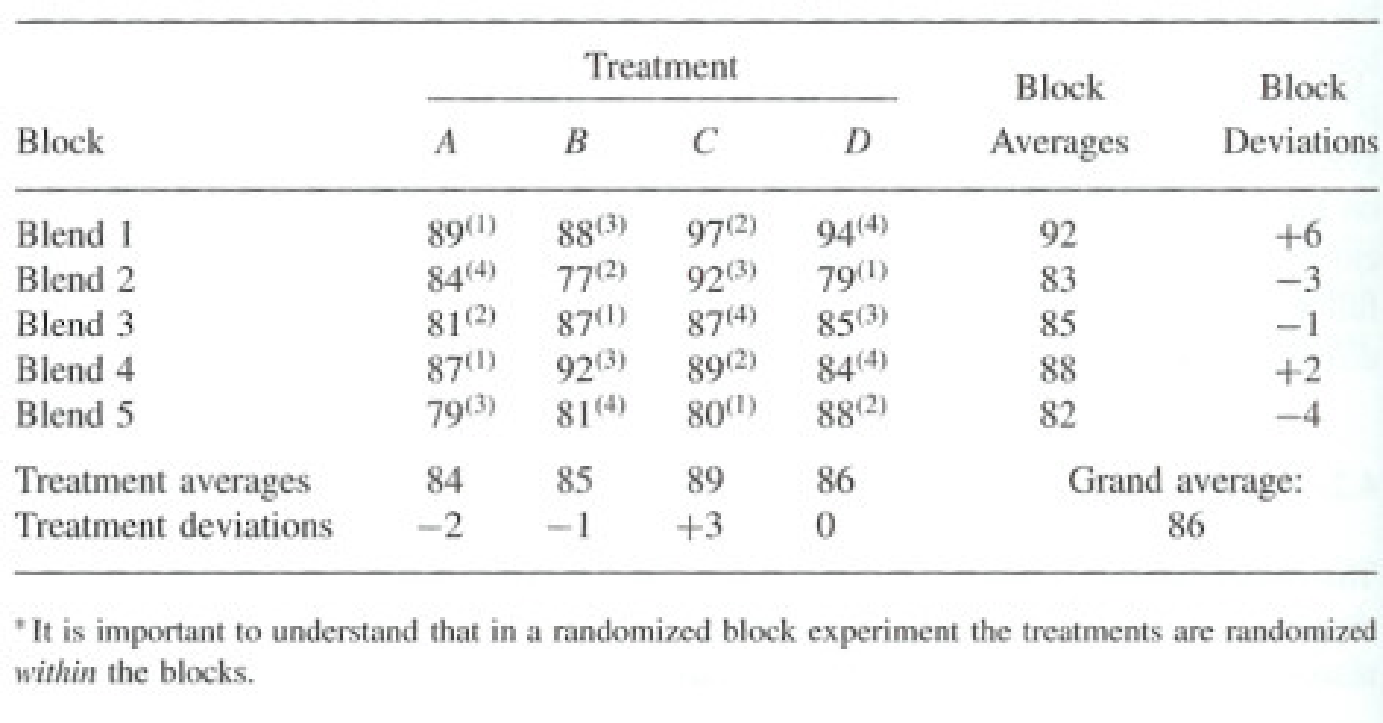

Diagram of 20 animals split into five blends of four, each blend receiving treatments A, B, C and D

Randomized Block Design (2)

R = D - B - T; the vectors R, B, and T are mutually orthogonal.

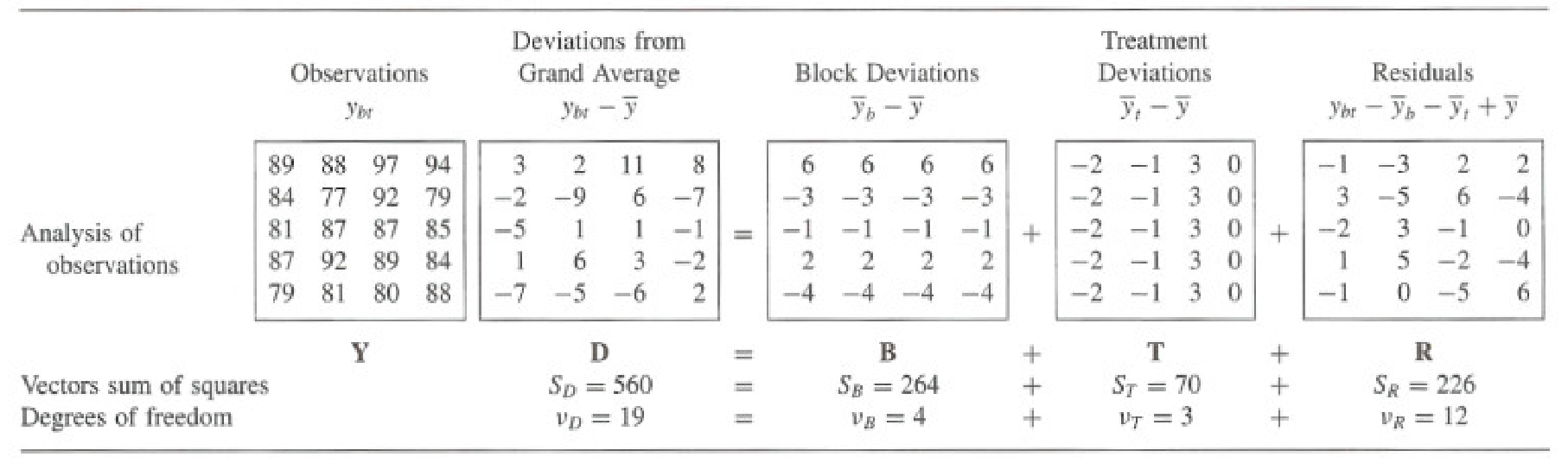

Vector decomposition of the penicillin data into block, treatment and residual components

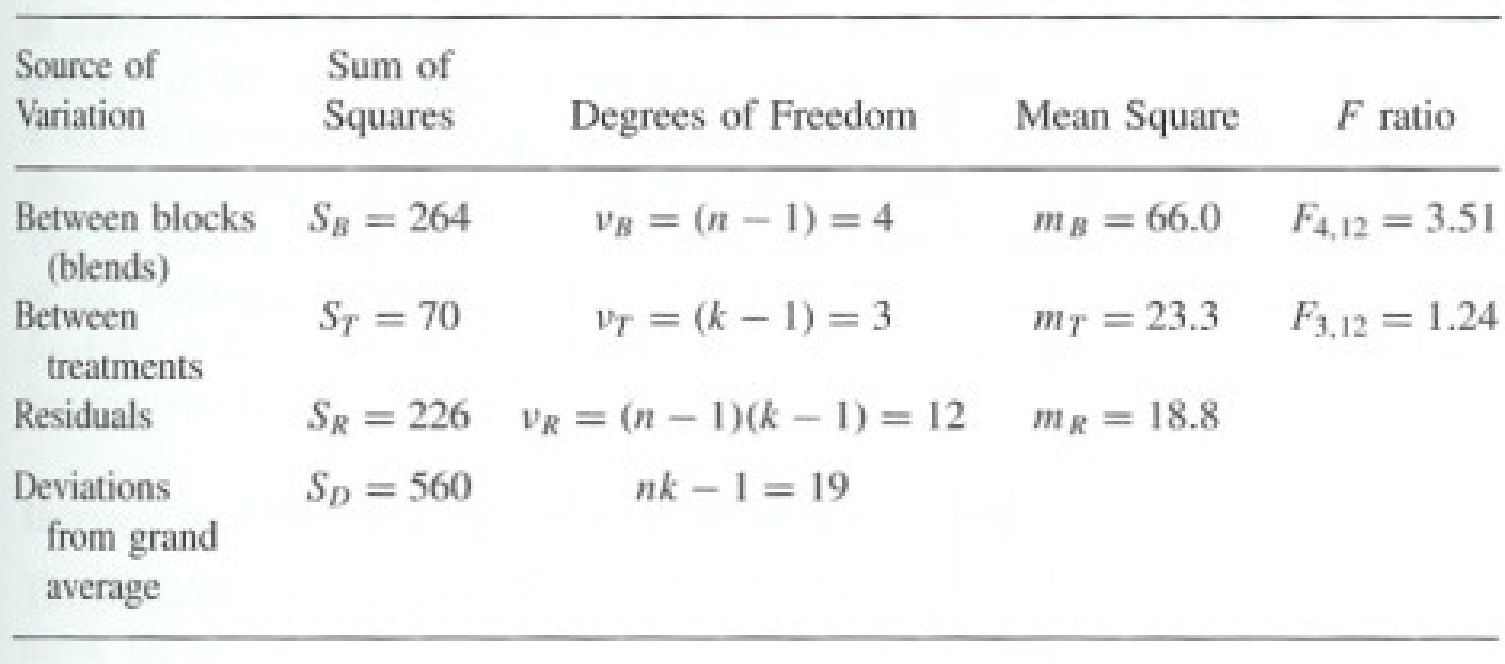

Analysis of variance table for the randomized block penicillin experiment

Why Use Randomized Blocking?

Of the total sum of squares not associated with treatments or with the mean, almost 50% is just block-to-block variation.
If the experiment were arranged on a completely randomized basis with no blocks, the error variance would have been much larger.
With randomized blocks, error is much less: of the total of SD = 560, SB = 264 is removed by blocks.
Randomized block design greatly increased sensitivity of the experiment; now able to detect smaller treatment differences.

Formulation

Randomized Block Design (4) — Diagnostic Tests

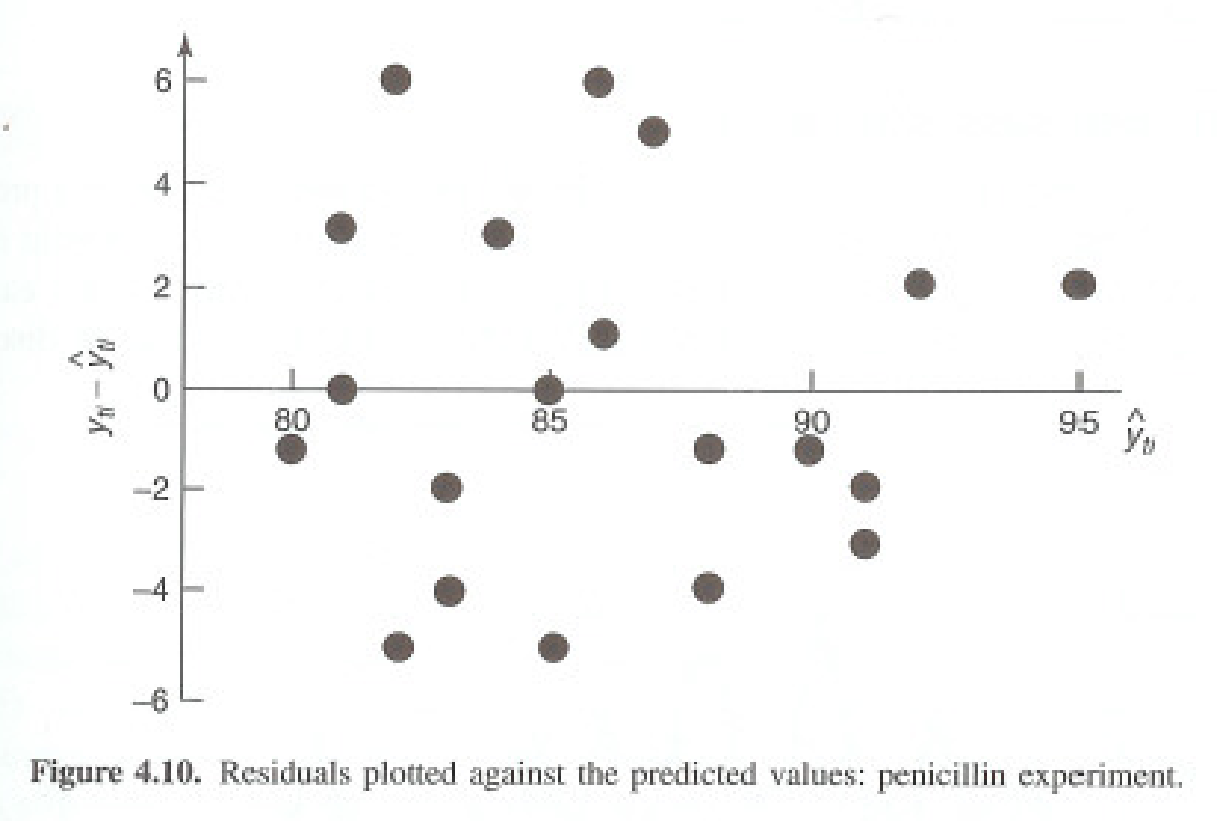

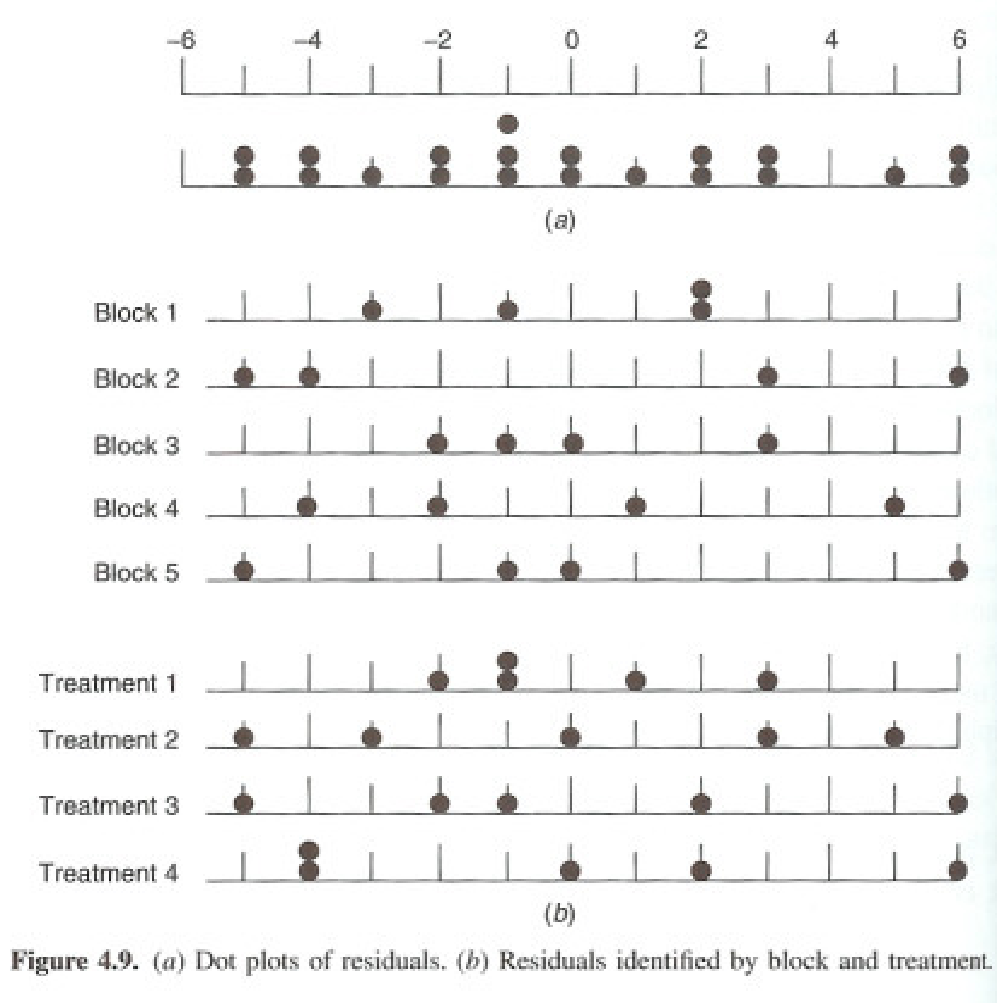

Diagnostic plots for the randomized block penicillin model

Residuals from the randomized block model plotted by blend and by treatment

Latin Squares

Workshop 12

Designing Experiments

Using 2 Types of Blocks — Example: Air Pollution

How much does adding Chemical A, B, C, or D to gasoline reduce air pollution?
Hypothesized relationship: chemical type → air pollution.
Confounding variables: driver differences, car differences.

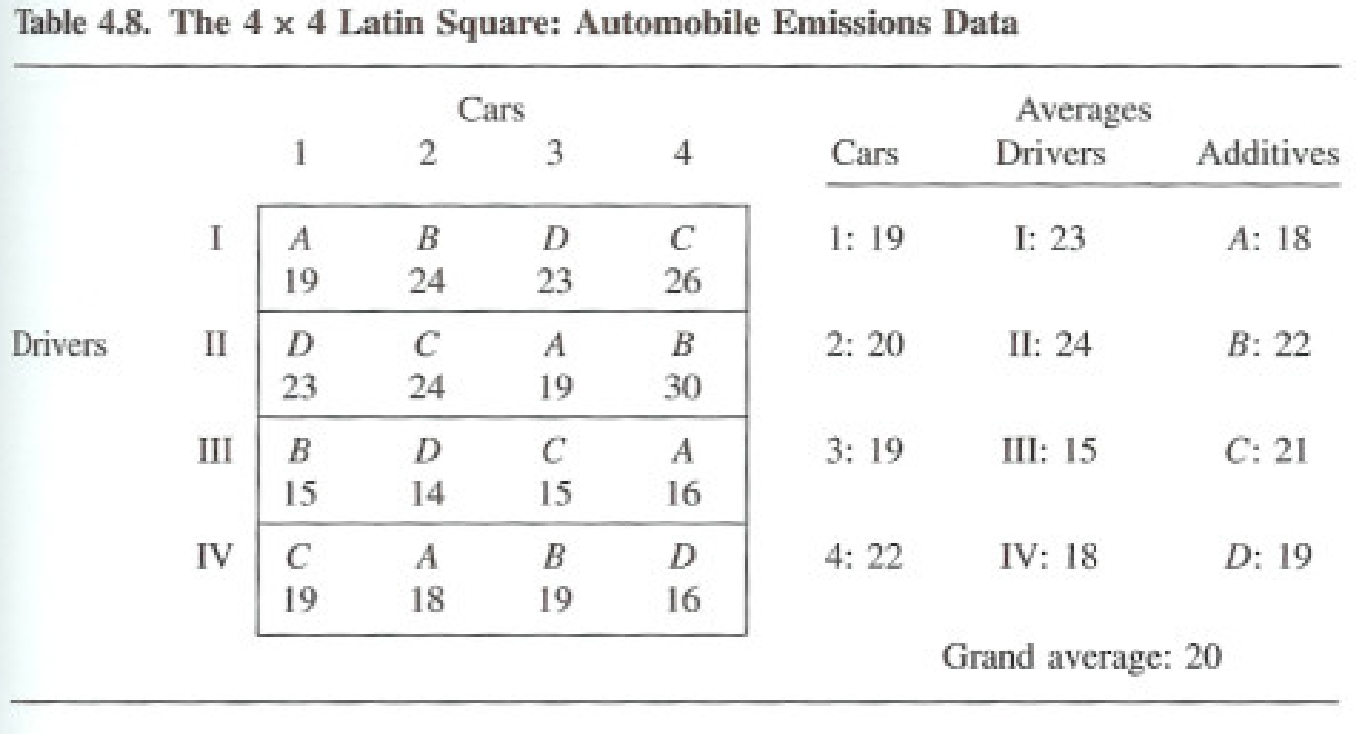

Latin square layout of four chemical treatments across four drivers and four cars

The design rule

4 treatments tested, 4 different drivers, 4 different cars.
2 block factors: drivers & cars.
Latin Squares design helps eliminate differences in treatment comparisons that are just due to drivers or cars.
Each treatment (A, B, C, or D) randomly appears once per row (driver) and once per column (car).

Using 2 Types of Blocks — Example: Air Pollution

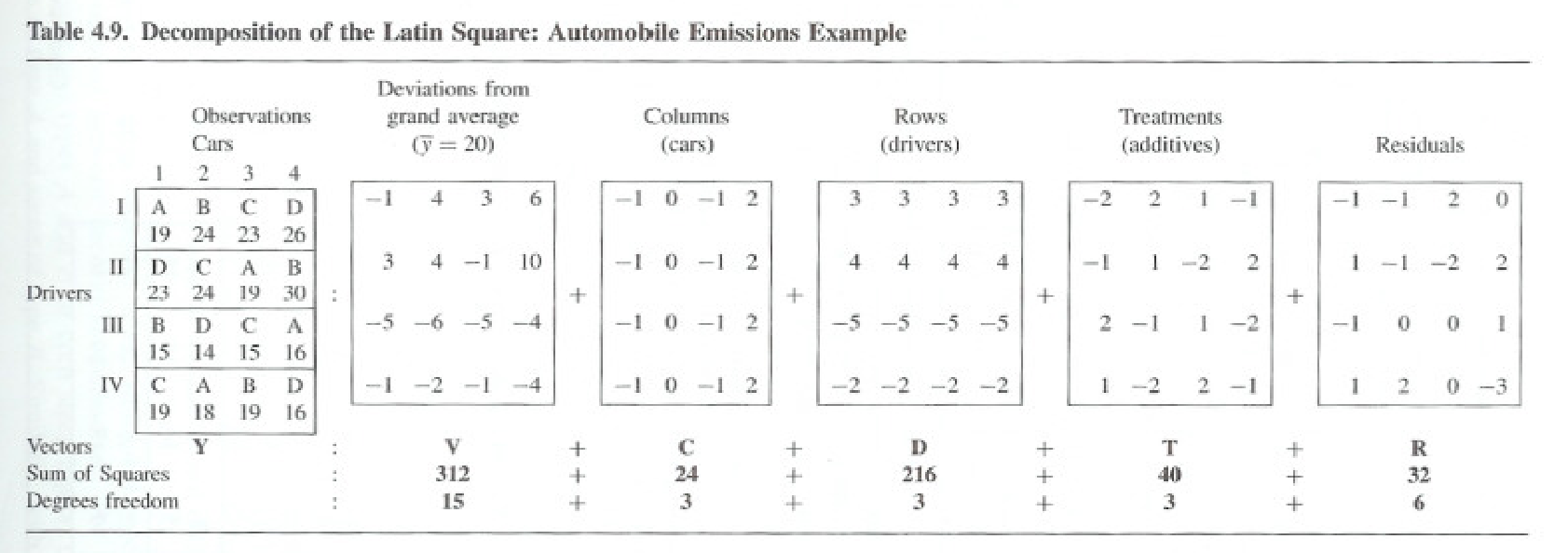

Data table of emissions readings arranged as a Latin square of drivers by cars

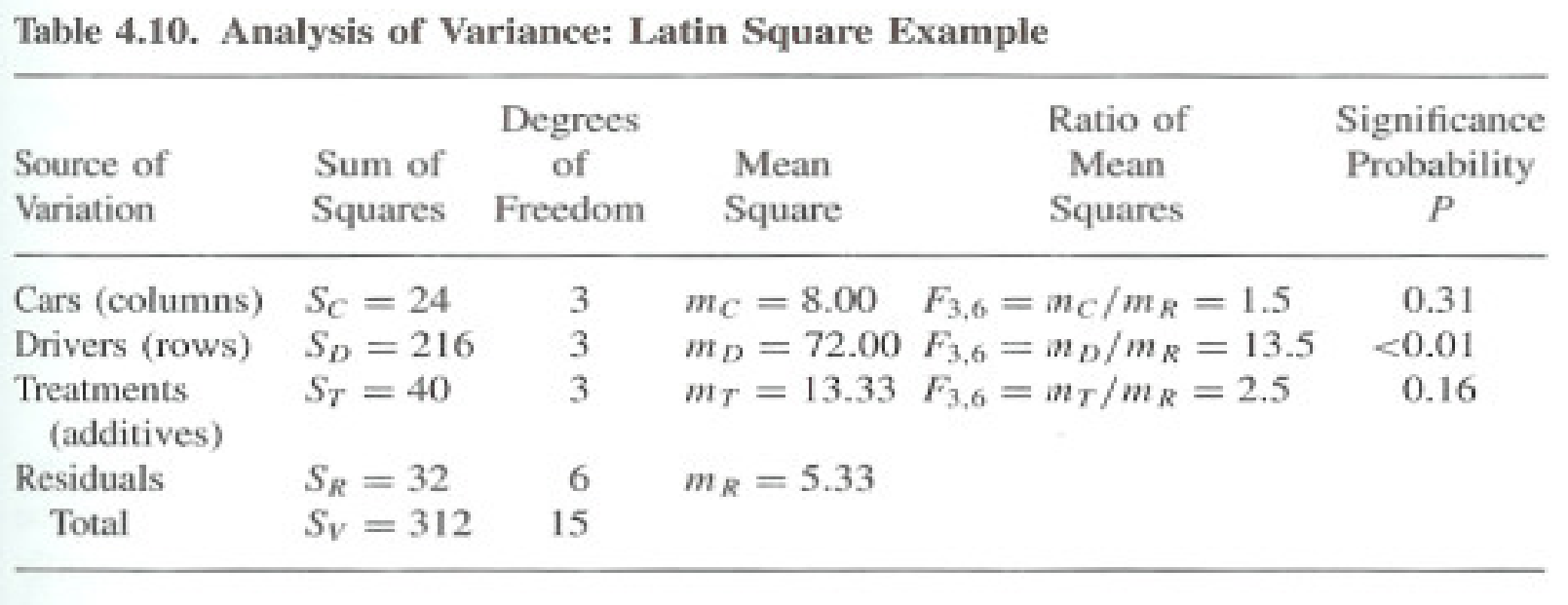

Analysis of variance table for the Latin square air pollution experiment

No convincing evidence for differences between the treatments.
Latin square design effective in eliminating variation due to drivers.

Using 3 Types of Blocks — Graeco-Latin Squares

A Graeco-Latin square is a k by k pattern.
Allows study of k treatments simultaneously, with 3 blocking variables, each at k levels.
Example: 1 extra blocking variable in car emissions — e.g. day of test.

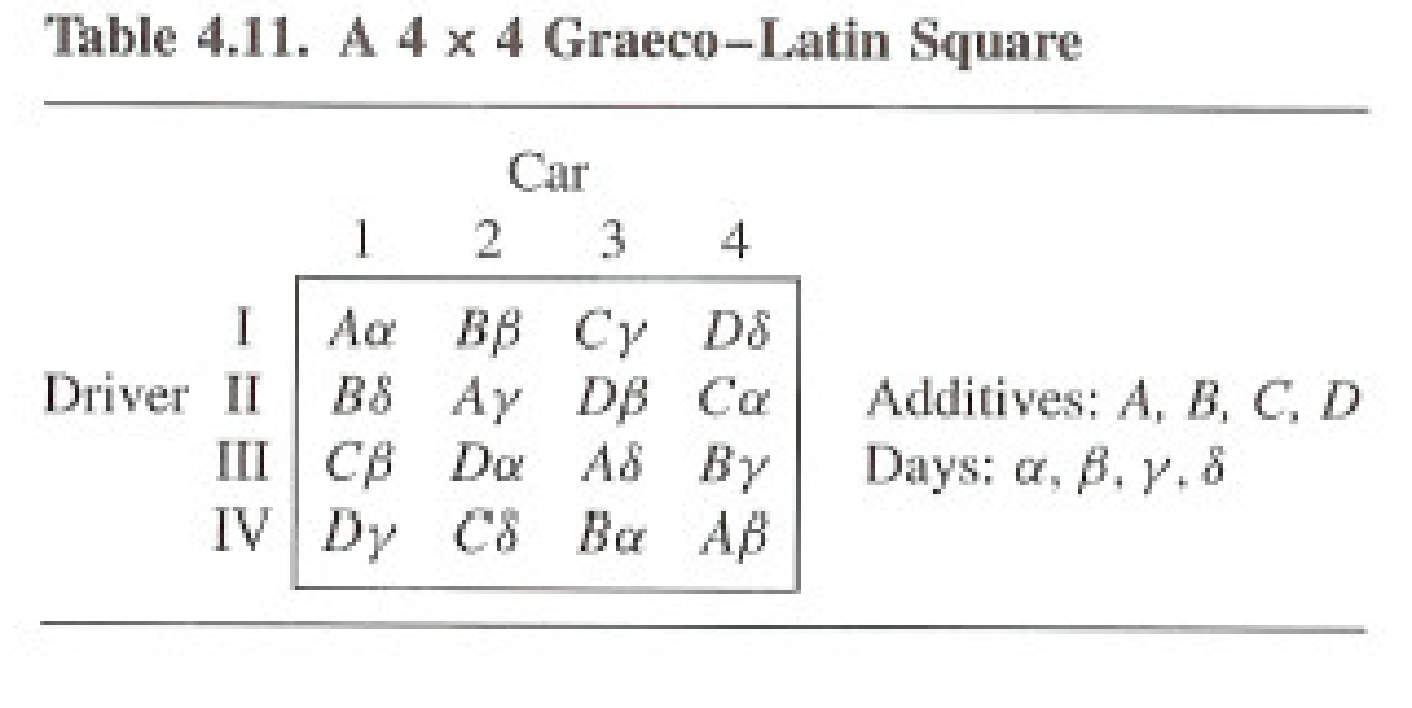

Graeco-Latin square layout adding Greek-letter blocks to the Latin square of drivers and cars

Using 3+ Types of Blocks — Example: Martindale Wear Tester

Machine used to test wearing quality of types of cloth. Records weight loss from a test piece in 1 machine cycle (rubbed against a std. grade of emery paper).
Treatments: 4 types of cloth A, B, C, D.
Block Type 1: mounted in 4 specimen holders 1, 2, 3, 4.
Block Type 2: each holder can be in 1 of 4 positions P1, P2, P3, P4.
Block Type 3: each emery paper sheet (alpha, beta, gamma, delta) was cut into 4 quarters.
Objective: (1) make accurate comparison of the treatments; (2) understand variability caused by holders, positions, emery papers, and cycles.

Hyper-Graeco Latin Squares — Example: Martindale Wear Tester

The design was effective both in removing sources of extraneous variation and in indicating their relative importance.
Because of the elimination of these disturbances, the residual variance was reduced by a factor of 8.
We could detect much smaller differences in treatment.

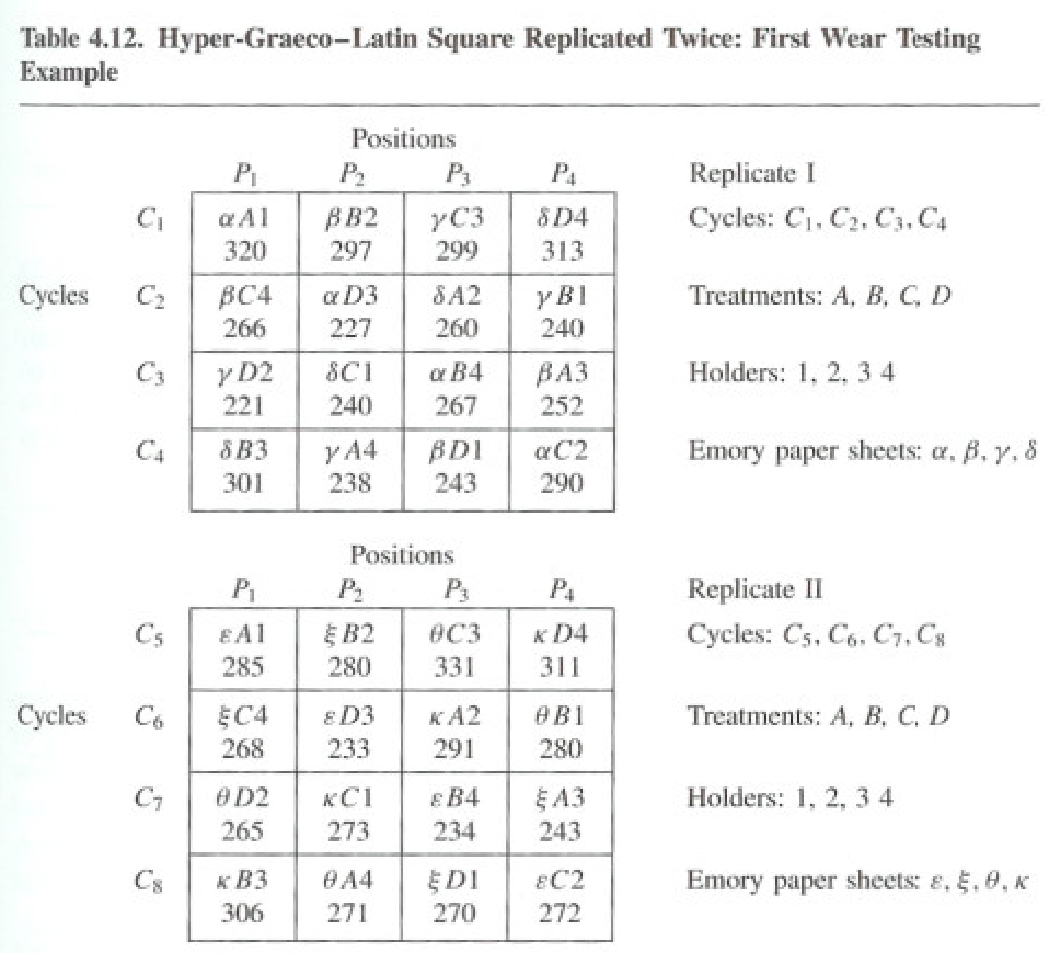

Hyper-Graeco-Latin square layout for the Martindale wear tester experiment

Hyper-Graeco Latin Squares — what the analysis showed

The F-stat = 5.39 with 3, 9 DOF, significant at the 2% level.
By using a design which makes it possible to remove the effects of many larger disturbing factors, differences between treatments were made detectable.
The analysis identified the large contributions to the total variation due to cycles and to emery papers.
This suggested improvements, which later led to changes in the design of the machine.

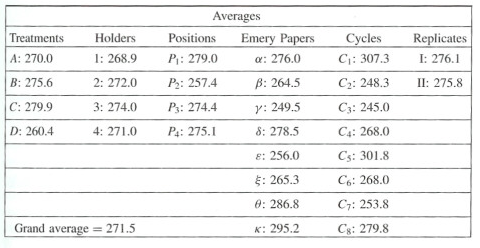

Analysis of variance table for the Martindale wear tester experiment

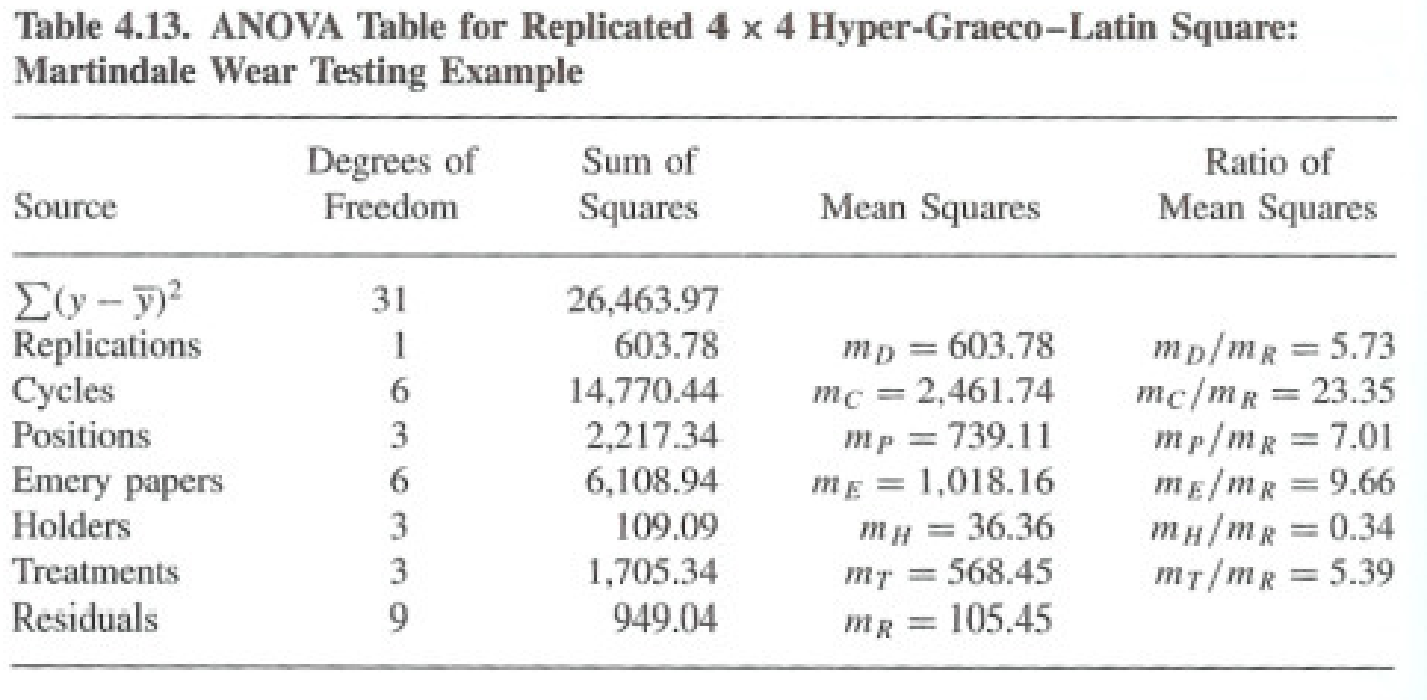

Effect estimates for cloth, holder, position, emery paper and cycle

Hyper-Graeco Latin Squares — graphical analysis

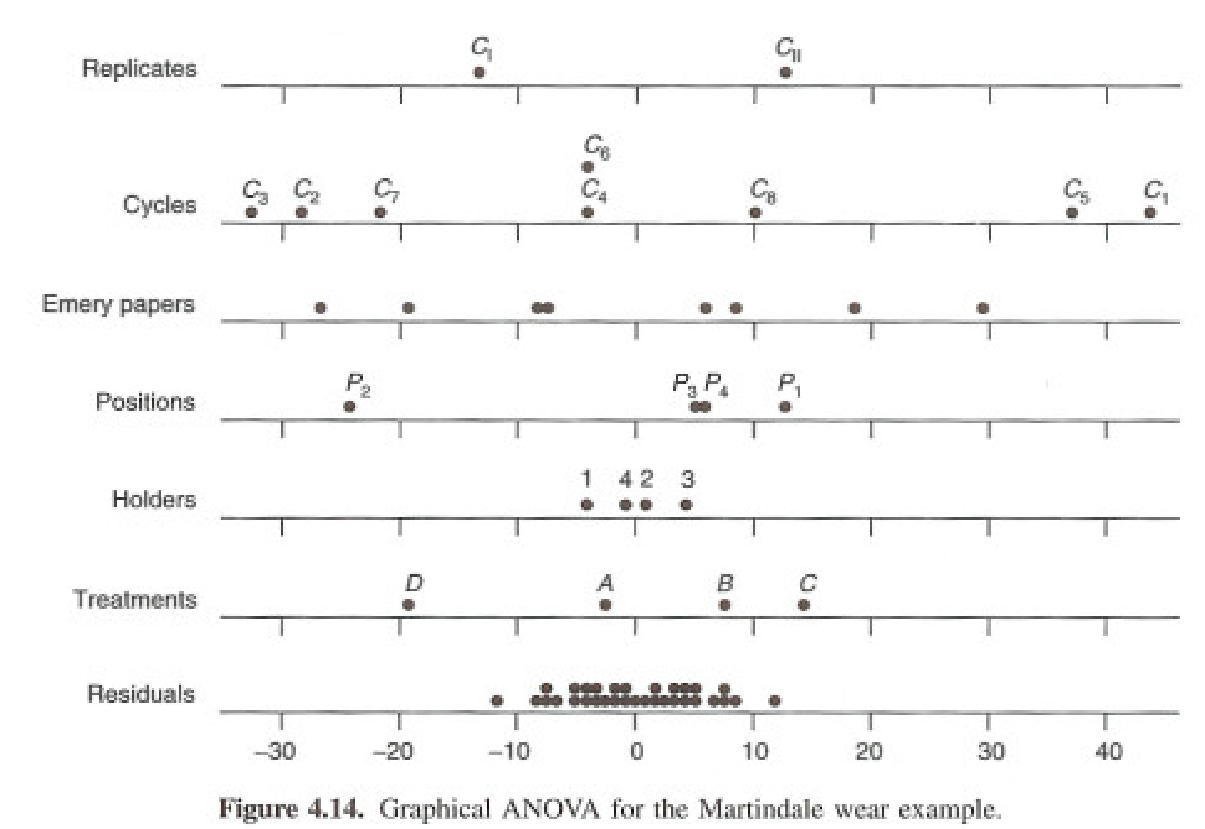

In graphical analysis, position P2 gives much less wear than the others, indicating a need of improvement.

Dot plot of wear by holder position showing position P2 far below the others

Balanced Incomplete Block Design

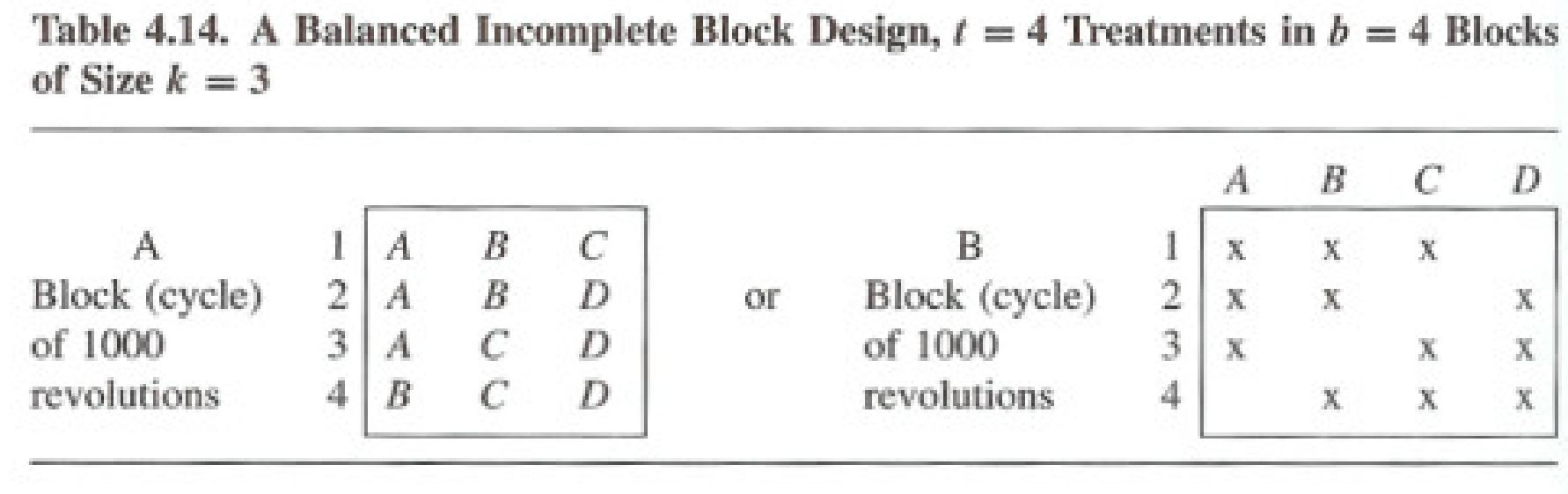

Suppose the Martindale wear tester allowed only three samples per cycle, but you had 4 treatments A, B, C, and D to compare.
4 treatments but a block size of 3 — too small to accommodate all the treatments simultaneously → balanced incomplete block design.
Property: every pair of treatments occurs together in a block the same number of times.

Doubly Balanced Incomplete Block Designs — Youden Squares

Compare 7 treatments in seven blocks of size 4 (e.g. test 7 types of cloth A–G).
But only 4 test pieces could be compared simultaneously in a single machine cycle.
Also had the opportunity to eliminate a second source of block variation: machine positions.

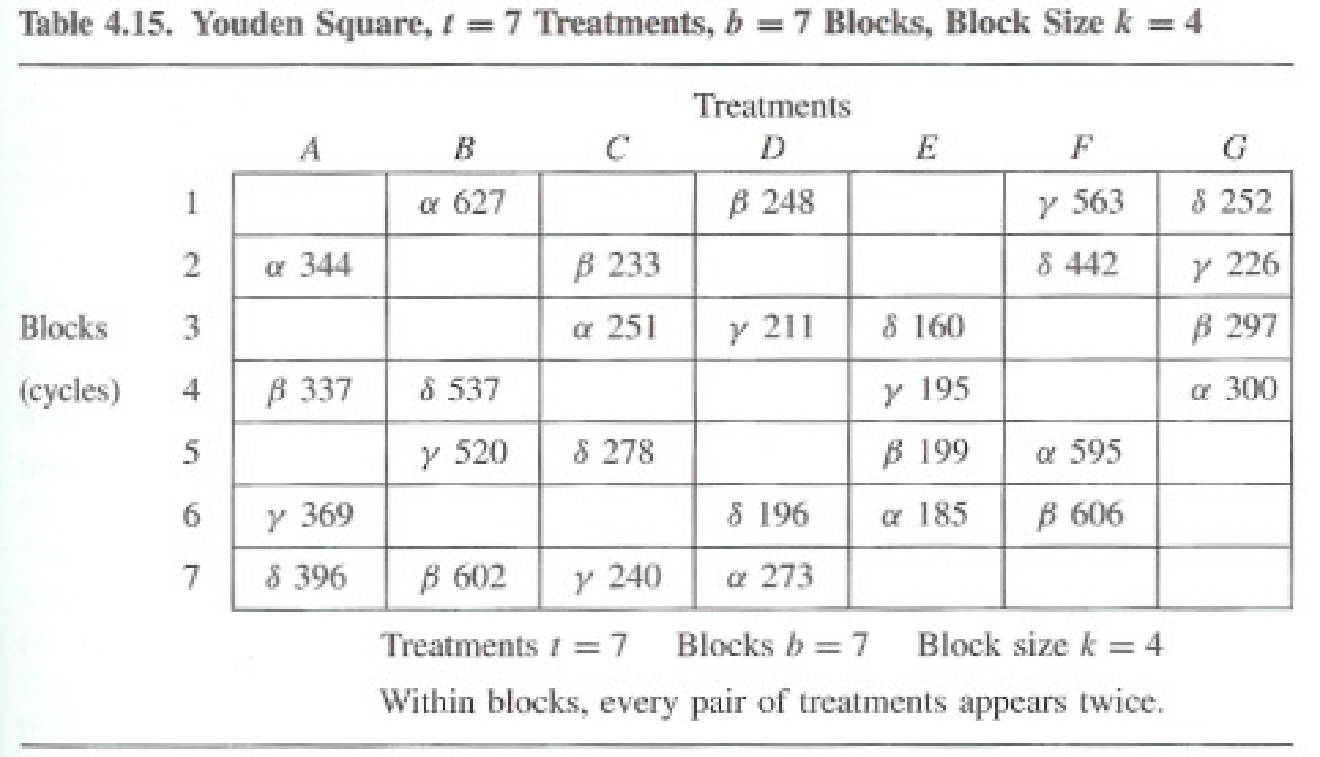

Youden square layout of seven treatments in seven blocks of four positions

Factorial Design

How do we handle these wacky designs?
Learn more next week in Factorial Design!
