Week: Probability

Lesson 3: Probability Functions

Tools for Risk Analysis

Tim Fraser, PhD

Assistant Teaching Professor, Systems Engineering
Cornell University

SYSEN 5300: Systems Engineering & Six Sigma

for Design and Operation of Reliable Systems

Risk Analysis with a particular emphasis on risk assessment and risk characterization. The key modeling tools we will study are how to conduct Failure Modes and Effects Analyses including the development of fault trees and event trees under uncertainty.
Modeling Reliability Modeling component and system reliability, including the use of physical acceleration models. Reliability is the ability of a system or component to perform its required function under stated conditions for a specified period of time. Reliability analysis is an element of risk analysis. In general risk analysis is substantially broader including explicit treatment of the consequences of different types of failures.

Quality Control Six sigma and statistical process control for quality control and improvement. A key process in the operation of reliable systems is the development and effective use of mechanisms to detect when performance is deteriorating so that corrective action can be taken.
System Improvement Improvement and optimization of system design for reliability. This will lead us to study design of experiments and the estimation of response surfaces that can greatly catalyze innovation, problem solving, and discovery.

Today's Class

Key Functions
Probability Functions
Probability Rules
Functions [Demo]
Appendix: Bayes Rule

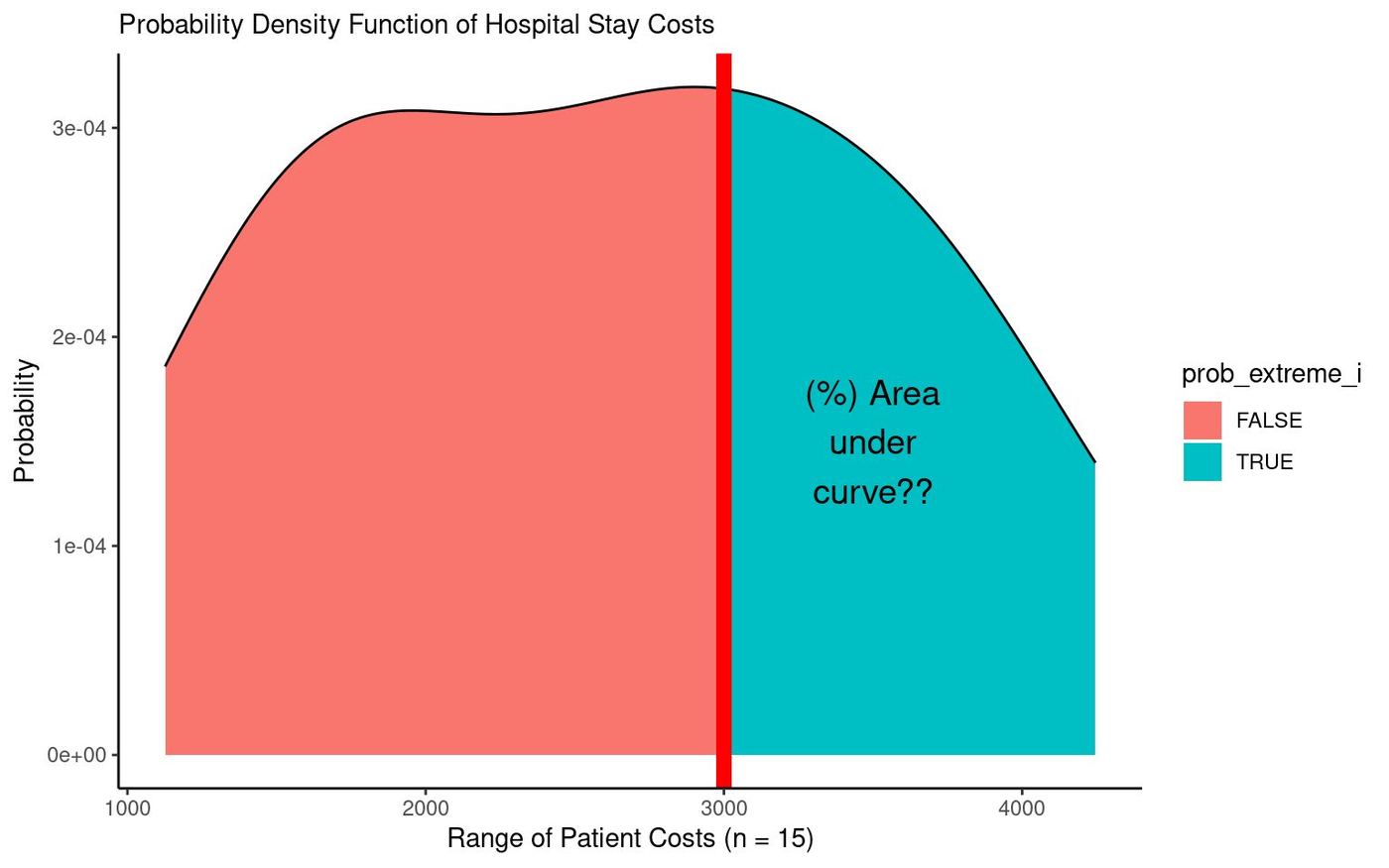

Probability density function of hospital stay costs, split at $3000 by a red line, the right tail labelled ‘(%) Area under curve??’

Investigate Distributions with Probability Functions

New functions

library(dplyr)
library(ggplot2)
library(broom)
library(mosaicCalc)

bind_rows(): stacks 2 or more data.frames on top of each other, matching columns by name.
mutate(): creates or edits variables in a data.frame.
summarize(): consolidates many rows of data into a single summary statistic (or several).
tibble(): creates a data.frame, but fancy! Can reference other vectors within the tibble.

Using mutate() and summarize()

Example data.frame

mycoffee

##       style price         shop
## 1     latte     5         <NA>
## 2 cappuccino    4         <NA>
## 3  americano    3         <NA>
## 4     coffee    3 Gimme Coffee
## 5 hot cocoa     2    Starbucks

mycoffee = mycoffee %>%
  mutate(purchased =
    c(5, 4, 10, 2, 1))

Using mutate() and summarize()

mycoffee %>%
  # Summarize data.frame into one row
  summarize(
    # Calculate mean price of drinks
    mean_price = mean(price),
    # Calculate total drinks purchased
    total_purchased = sum(purchased))

##   mean_price total_purchased
## 1        3.4              22

Probability Functions

Lesson 3 — Using Probability Density Functions & Cumulative Density Functions

Probability Density Function

For a vector x, the probability density function is a curve providing the probability (y) of each value across the range of x.
It shows the relative frequency (probability) of each possible value in the range.

obs = c(1126, 1493, 1528, 1713, 1912, 2060, 2541, 2612,
        2888, 2915, 3166, 3552, 3692, 3695, 4248)

Probability Density Function (PDF)

Cumulative Distribution Function (CDF)

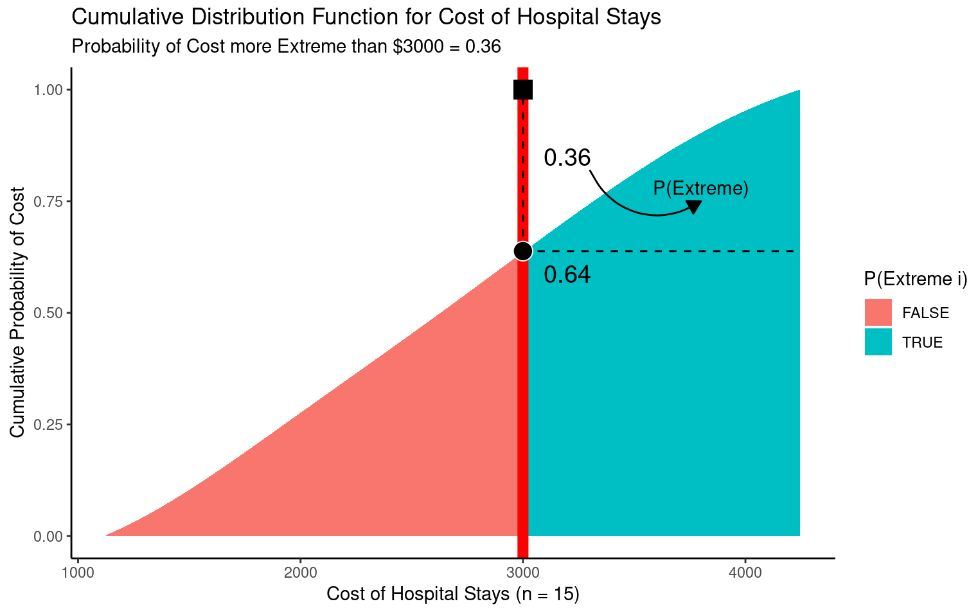

Cumulative distribution function for cost of hospital stays, rising to 1.00, annotated 0.36 above and 0.64 below a red line at $3000, with P(Extreme) marked

cumsum(prob) / sum(prob) → Probability of Cost more Extreme than $3000 = 0.36

Applying PDFs and CDFs

The Ithaca Farmers Market is a vendor-owned cooperative that runs a Saturday-and-Sunday morning market for produce and hand made goods on the Cayuga Lake waterfront. This Saturday, a volunteer tracked 500 customers and recorded how many stalls each customer visited.

The average customer visited a mean of 5.5 stalls and a median of 5 stalls, with a standard deviation of 2.5 stalls.
But their spreadsheet got blown away into the lake! Can we still estimate visitation patterns with these statistics?

Farmers market stall: pint baskets of purple dwarf eggplant and potatoes on a blue cloth with handwritten price signs

Simulating Unobserved Distributions

We don't have the actual data, but we know several basic features of our distribution!

Our variable is visits, a count ranging from 0 to infinity. (Can't have -5 visits, can't have 1.3 visits.)
The median (5) is less than the mean (5.5), so our distribution is right-skewed.

# Randomly sample 500 visits from a
# poisson distribution with a mean of 5.5
visits = rpois(n = 500, lambda = 5.5)
# Check out the distribution!
visits %>% hist()

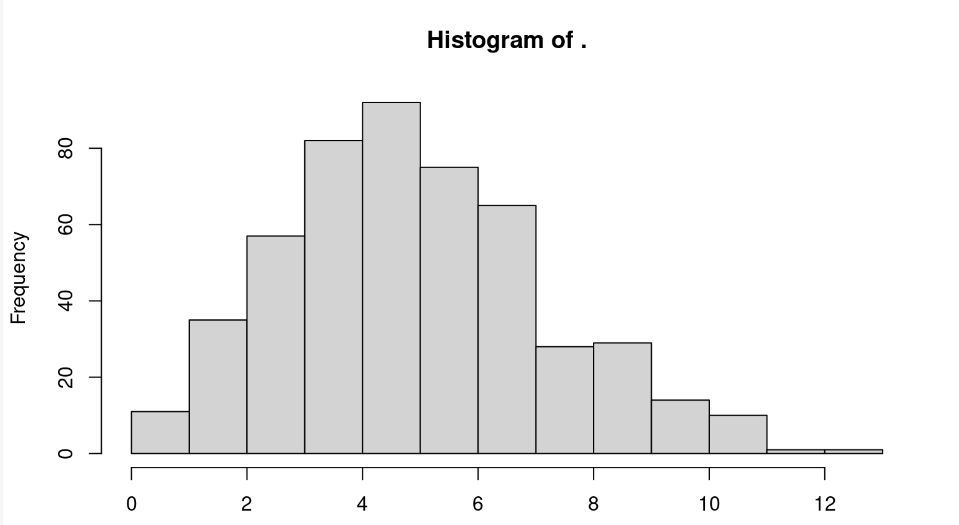

Histogram of simulated visits, peaking near 5 and tailing off past 10

Your Guide to Probability Estimation given Unobserved Distributions

Table 1: Probability Functions (r, d, p, and q)

Meaning · Purpose · Main Input · Normal · Poisson · Gamma · Exponential

Random Draws from Distribution · Simulate a distribution · n = # of simulations · rnorm() · rpois() · rgamma() · rexp()

Probability Density Function · Get Probability of Value in Distribution · x = value in distribution · dnorm() · dpois() · dgamma() · dexp()

Your Guide to Probability Estimation given Unobserved Distributions

Table 1: Probability Functions (r, d, p, and q)

Meaning · Purpose · Main Input · Normal · Poisson · Gamma · Exponential

Cumulative Distribution Function · Get % of Distribution LESS than Value · q = a cumulative probability · pnorm() · ppois() · pgamma() · pexp()

Quantiles Function · Get Value of any Percentile in Distribution · p = percentile · qnorm() · qpois() · qgamma() · qexp()

Finding probability densities

# Get the frequency for 5 visits
# in the distribution
pd5 = dpois(5, lambda = 5.5)
# Check it!
pd5

## [1] 0.1714007

If you don't have the raw data…

# Approximate the PDF of our
# simulated visits
dsim = visits %>% density() %>%
  approxfun()
# Try our density function for
# our simulated data!
dsim(5)

## [1] 0.1759108

If you do have the raw data….

Finding cumulative probabilities

What percentage of customers stopped by over 5 stalls?

# Get the cumulative frequency for a
# value (5) in the distribution
cd5 = ppois(q = 5, lambda = 5.5)
1 - cd5

## [1] 0.4710813

If you don't have the raw data…

Finding cumulative probabilities

psim = visits %>% density() %>% tidy() %>%
  # Get cumulative probability distribution
  arrange(x) %>%
  # Get cumulative probabilities
  mutate(y = cumsum(y) / sum(y)) %>%
  # Turn it into a literal function!
  approxfun()

If you do have the raw data….

# Check it!
psim(5)

## [1] 0.4642488

Finding quantiles

How many visits did people usually make? Estimate the interquartile range (25th-75th percentiles) of the unobserved distribution.

q5 = qpois(p = c(.25, .75), lambda = 5.5)
# Check it!
q5

## [1] 4 7

Looks like 50% of folks visited between 4 and 7 stalls

If you don't have the raw data…

Finding quantiles

qsim = tibble(
  # Get a vector of percentiles from 0 to 1, i
  x = seq(0, 1, by = 0.001),
  # Using our simulated distribution,
  # get the quantiles (values) at those points
  y = visits %>% quantile(probs = x)) %>%
  # Approximate function!
  approxfun()

If you do have the raw data….

# Check it!
qsim(c(.25, .75))

## [1] 4 7

What if we are not certain whether our unobserved vector of visits has a Poisson distribution or not? Please calculate the probability that customers will stop at more than 5 stalls, using the Normal & Exponential distributions.

Out of n = 500 customers, the average customer visited a mean of 5.5 stalls and a median of 5 stalls, with a standard deviation of 2.5 stalls.

Grogu (Baby Yoda) cradling a cup of soup in both hands

Probability Rules

Lesson 3 — Conditional Probability & Total Probability

Conditional Probability

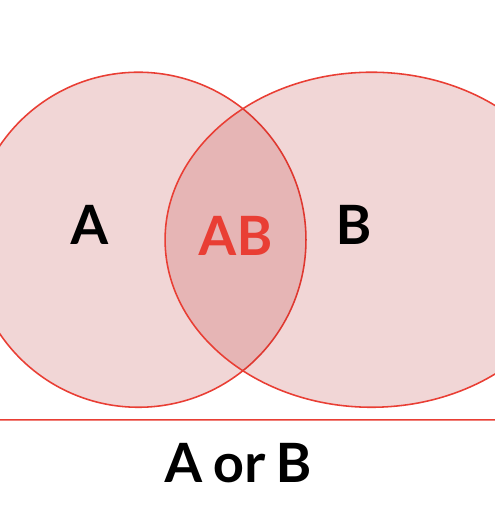

Two overlapping pink circles labelled A and B, their intersection labelled AB, with a bracket beneath labelled ‘A or B’

Conditional Probability: probability of two events happening together reflects the probability of the first happening, times the probability of the second happening given that the first has already occurred.

P(A) = 0.25 Area of A
P(B) = 0.50 Area of B
P(B | A) = 0.2 % of A that is B
P(AB) = 0.05 Area of AB
P(AB) = P(A) x P(B|A)
0.05 = 0.25 x 0.2
P(A or B) = 0.7 P(A) + P(B) - P(AB)

Visual Conditional Probability

P(AB) = P(A) × P(B|A)

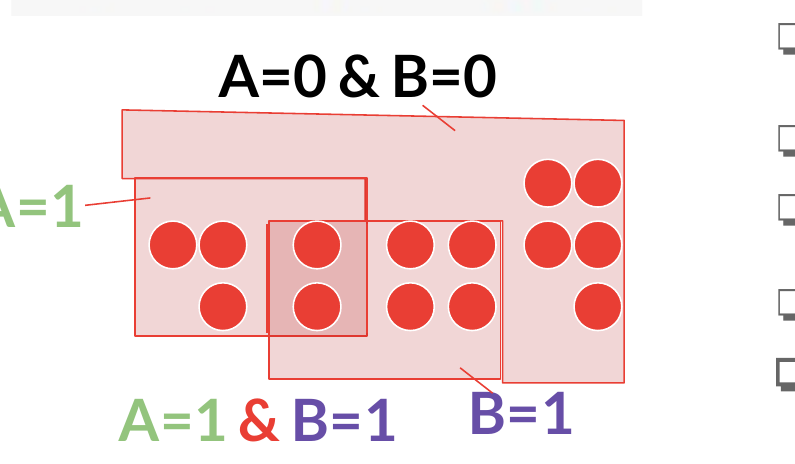

Overlapping outlined regions of red dots: the whole set labelled A=0 & B=0, a left box labelled A=1, a right box labelled B=1, and their overlap labelled A=1 & B=1

P(A=1) = 5 / 14
P(B=1) = 6 / 14
P(A=0&B=0) = 5/ 14
P(A=1 or B=1) = 9/14
P(B=1|A=1) = 2/5
P(A=1&B=1) = 2/14
2/14 = 5/14 * 2/5

Total Probability

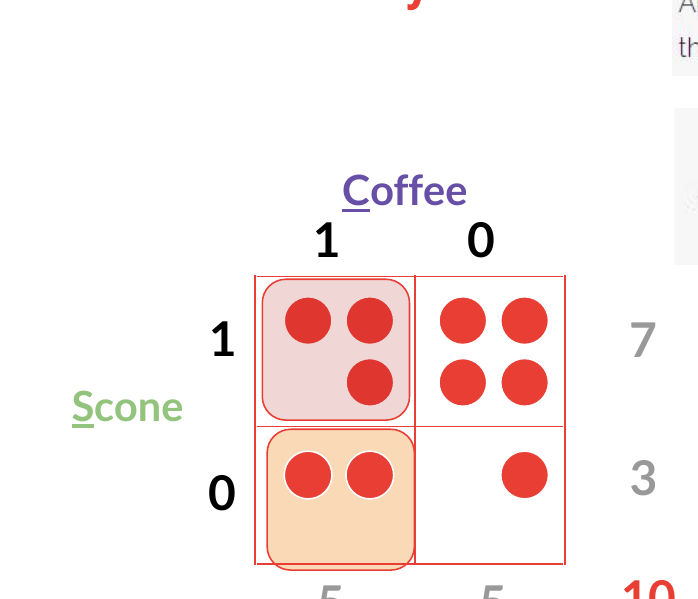

A two-by-two grid of red dots cross-tabulating Scone (1, 0) against Coffee (1, 0), with margins 7, 3, 5, 5 and a total of 10

Any event A that is mutually exclusive from event E (can't happen at the same time) has the following probability..

P(A) = ∑_i=1ⁿ P(A|E_i) × P(E_i)

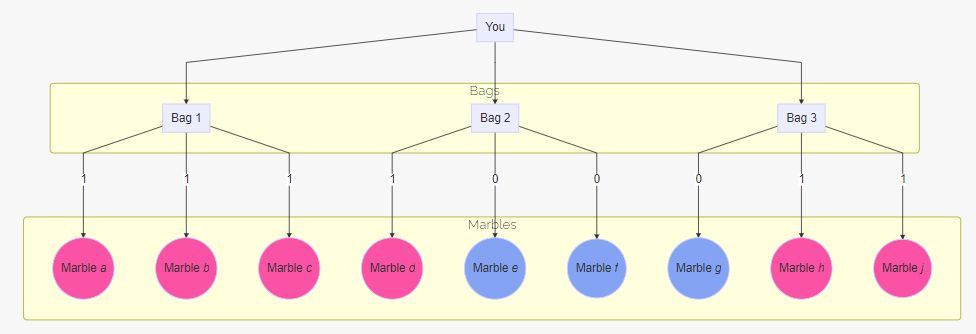

A probability tree branching from one node into three bags, each into several marbles

P(C) = P(CS) + P(CS₀)

Functions [Demo]

Lesson 3 — How to make a function in R/Python

Further Reference

Probability Rules — The following slides give extra details that may help, if relevant to your projects.

A corgi in a red cape, standing on its hind legs and looking up

Bayes Rule

A steaming white cup of coffee on a saucer on a wooden cafe table

A local coffee chain needs your help to analyze their supply chain issues. They know that their scones help them sell coffee, but does their coffee help them sell scones?

Over the last week, when 7 customers bought scones, 3 went on to buy coffee.
When 3 customers didn't buy scones, just 2 bought coffee.
In general, 7 out of 10 of customers ever bought scones.
What's the probability that a customer will buy a scone, given that they just bought coffee?

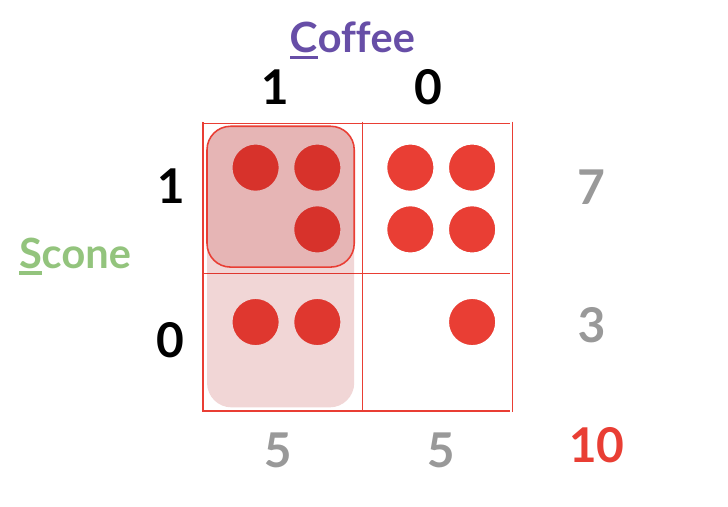

Two-by-two grid of red dots cross-tabulating Scone against Coffee, with the Coffee=1 column shaded, margins 7, 3, 5, 5 and a total of 10

Can we deduce P(Scone | Coffee) on our own?

P(Scone=1) = 7 / 10
P(Coffee=1) = 5 / 10
P(Scone=0) = 3 / 10
P(Coffee=0) = 5 / 10
P(Scone=1 | Coffee=1) = 3 / 5
P(Coffee=1 | Scone=1) = 3 / 7
P(Scone=1 | Coffee=0) = 2 / 5
P(Coffee=0| Scone=1) = 4 / 7

P(S|C) = P(C|S) x P(S) / P(C)
3/5 = 3 / 7 x 7/10 / 5 /10

P(Scone=1) = 7 / 10
P(Coffee=1) = 5 / 10
P(Scone=0) = 3 / 10
P(Coffee=0) = 5 / 10
P(Scone=1 | Coffee=1) = 3 / 5
P(Coffee=1 | Scone=1) = 3 / 7
P(Scone=1 | Coffee=0) = 2 / 5
P(Coffee=0| Scone=1) = 4 / 7

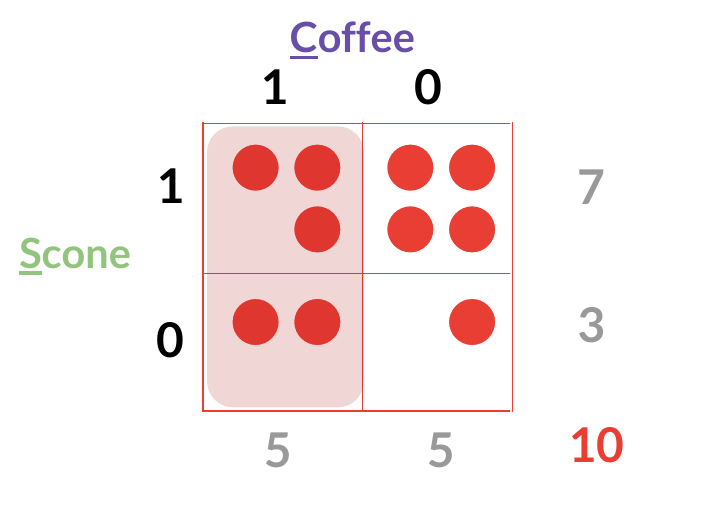

The same Scone-by-Coffee dot grid with the Coffee=1 column shaded a flat pink

But what if we don't know P(Coffee)?

P(Scone=1) = 7 / 10
P(Coffee=1) = 5 / 10
P(Scone=0) = 3 / 10
P(Coffee=0) = 5 / 10
P(Scone=1 | Coffee=1) = 3 / 5
P(Coffee=1 | Scone=1) = 3 / 7
P(Scone=1 | Coffee=0) = 2 / 5
P(Coffee=0| Scone=1) = 4 / 7

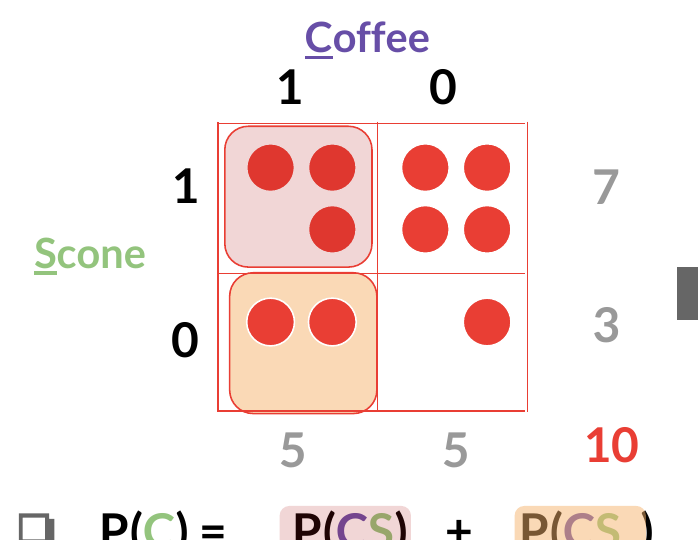

Scone-by-Coffee dot grid with the Scone=1 cell shaded pink and the Scone=0 cell shaded tan

P(C) = P(CS) + P(CS₀)
P(CS) = P(S) x P(C|S) = P(C) x P(S|C)
P(CS₀) = P(S₀) x P(C|S₀) = P(C) x P(S₀|C)

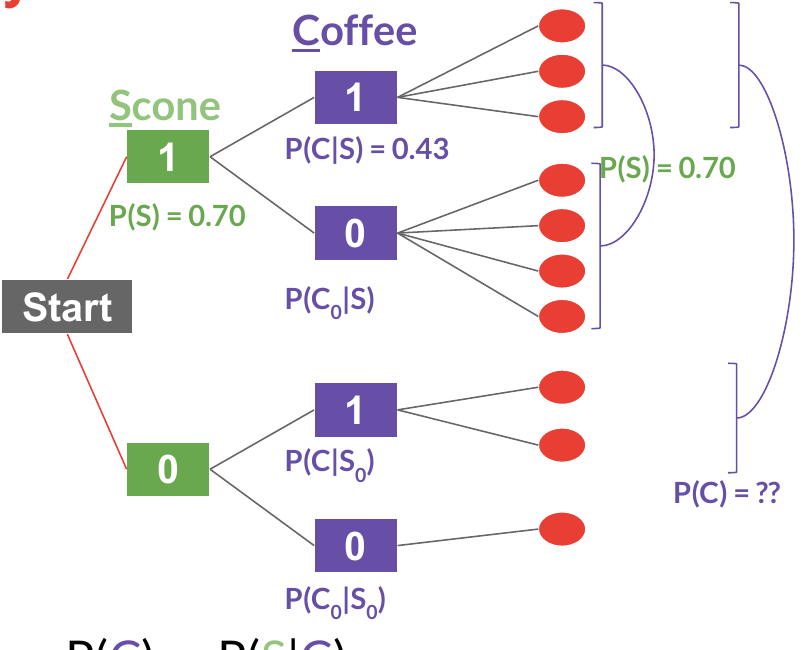

Probability tree from Start to Scone 1/0 to Coffee 1/0, each ending in red dots, annotated P(S) = 0.70, P(C|S) = 0.43 and P(C) = ??

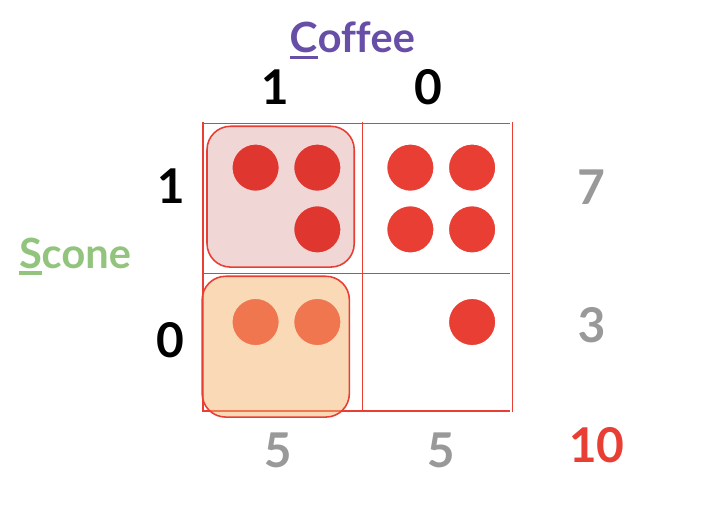

Scone-by-Coffee dot grid with the Scone=0 & Coffee=1 cell shaded tan and its dots drawn in orange

P(C) = P(S) x P(C|S) + P(S₀) x P(C|S₀)
5/10 = 7/10 x 3/7 + 3/10 x 2/3

P(Scone=1) = 7 / 10
P(Coffee=1) = 5 / 10
P(Scone=0) = 3 / 10
P(Coffee=0) = 5 / 10
P(Scone=1 | Coffee=1) = 3 / 5
P(Coffee=1 | Scone=1) = 3 / 7
P(Coffee=1| Scone=0) = 2 / 3

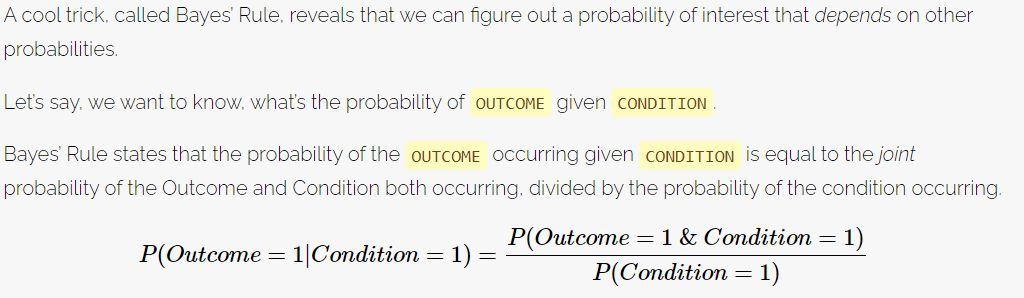

Bayes' Rule states that the probability of the OUTCOME occurring given CONDITION is equal to the joint probability of the Outcome and Condition both occurring, divided by the probability of the condition occurring.

P(Outcome = 1 | Condition = 1) equals P(Outcome = 1 & Condition = 1) divided by P(Condition = 1)
